Engineering 100-950

Lab 1: Arduino 101

Contents

Materials

For this lab, you will need:

Introduction

Welcome to ENGR100-950! Over the course of the next semester, you will be designing and building your own circuit board, complete with measurement instruments to gather information on acceleration and pressure (altitude!) data. To get to that point, we will spend the first several labs learning about various components and eventually how to combine them into a cohesive system.

In lecture, you’ve had a crash course on the ins and outs of micro-controllers. Now, you’ll be working with your own Arduino Nano micro-controller so you can begin to learn how to use it. The Nano will be the brain of your payload; it is very well-suited to these sorts of applications, as you will see.

Arduino Nano pinout

The IO pins on the Nano each serve different purposes. Above, and in resources, is a helpful diagram detailing the types of pins on the board.

In general, the digital pins are on one side (D2 - D13), and the analog pins are on the other (A0 - A7). Digital pins only read and write binary values - HIGH (5V) or LOW (0V). Analog pins can also write these binary values. However, analog pins can read more than just binary values. They read a range of analog values from 0V - 5V. An analog pin reads the voltage that it “sees” on the circuit or sensor you connect it to.

Finally, it’s worth noting the GND pin. Voltage values are read with respect to some constant reference. They are relative, not absolute. This reference is usually called ‘Ground.’ There should ALWAYS be a ground connection on every circuit you make, whether you are using a micro-controller or not. This is essential when dealing with electricity, to make sure that things don’t spark or get fried because they draw too much power.

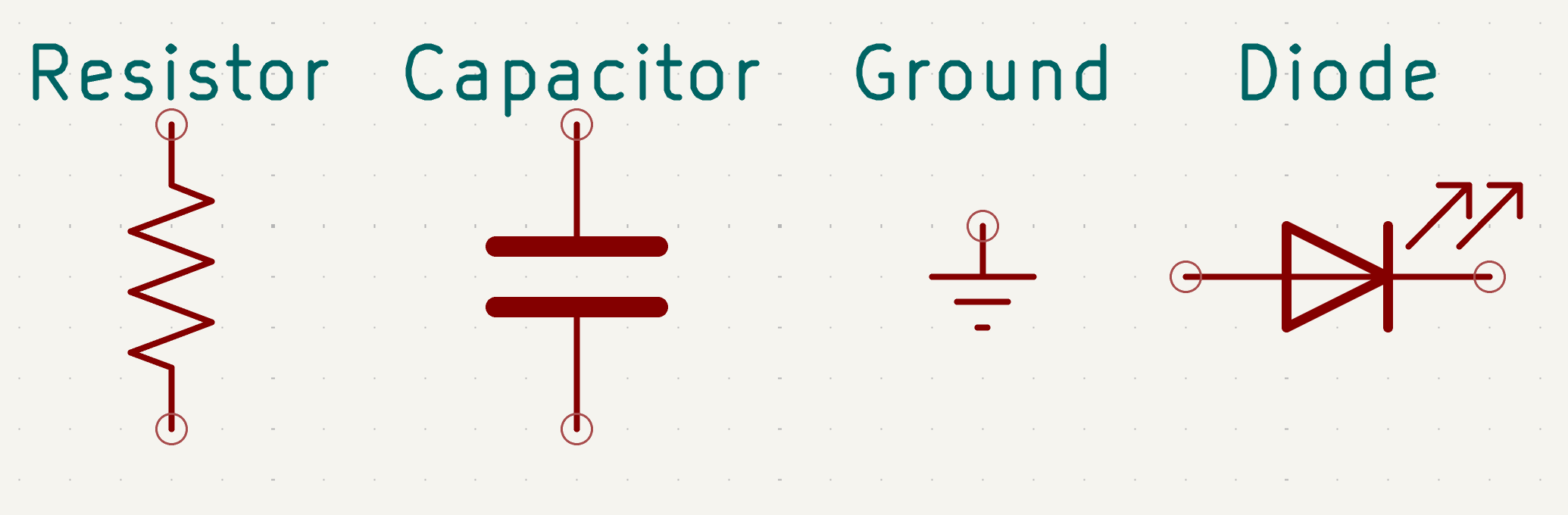

To illustrate, consider the simple LED circuit shown below, where a 5V supply powers a bulb, which is attached to GND. The two circuits shown are actually equivalent representations of the same thing. In the circuit on the left, the 5-volt battery raises the top half of the loop 5 volts higher than the bottom half. The bottom half of the loop is held at zero volts, since it is grounded. Current flows clockwise from the positive (top) to the negative (bottom) terminals of the battery.

In the circuit on the right, the top node is held at 5V by some unseen source, and the bottom is held at 0V because it is grounded. The current flows down, into the grounded node. This representation works great if you want to analyze a fragment from a larger circuit.

Grounding circuit schematic example

Procedure

1. The Breadboard

Before actually launching into the building of circuits, it’s important to understand the tools that you are working with. Your breadboard will act as the “circuit board” on which you build your systems. Notice that it is organized by enumerated rows and columns.

The pins of the electronic devices go into the holes in the breadboard. These holes are related to each other in that every row of 5, as defined on the board, are electrically connected. This means that if, for instance, you connect a 5V battery to a given hole, all of the holes in that row are raised to 5V. The Arduino Nano will supply 5V, so if you supply a given hole with 5V, all of the holes in that row will have 5V.

Here is a helpful video on breadboards

Circuit elements are connected in breadboards by connecting the input pins of one device to the same row as the output pins of another device. In this way, devices can be chained together to create complex circuits. An example is shown below. This circuit is called a voltage divider, and consists of two resistors connected end to end. A formal circuit diagram of a voltage divider is shown later in this manual, and in resources.

Voltage divider on a breadboard

Your lab instructors will demonstrate using a breadboard before the lab begins. If you have questions about whether or not you are connecting devices appropriately, please don’t hesitate to ask.

  1. Check out the first half of this video. This shows how to connect an LED to the 5V output pin of the Arduino, a resistor, and then to ground. This circuit will work without any Arduino code at all and is a good test for the circuit board and powering the Arduino! This is the circuit you will build in step 2.

  2. Build the LED circuit shown in the schematic below. When built, it should look similar to the voltage divider circuit in Fig. 3, except one of the resistors will now be an LED. Be aware that LEDs only turn on when placed in your circuit in the correct orientation. Try switching the orientation of your LED if it doesn’t turn on after completing step 2.

    Hint: one leg is longer than the other! Check the references page for more…

    LED Circuit to build Note: Vin refers to the 5V pin on the Arduino for now. We will move this in 2.3 below.

  3. Turn on the Arduino by plugging in the mini USB cord into the device and the USB into the computer. Note that an LED built into the micro-controller should begin glowing. The LED you connected to the Arduino should also begin to glow if your circuit is correct.

  4. To run any code on the Arduino, you will need to set your environment. Open up the Arduino IDE on your computer. We will need to add a library to access the starter code for our class. To setup your Arduino IDE and required library, follow the instructions in tutorials.

  5. Make sure the correct board is connected under the “Tools” menu. The board should be “Arduino Nano”. You might have to change the selected port if the IDE is failing to find the board.

Do not continue to the next section unless you can see your Arduino Nano and its port in your Arduino IDE, and there are LED(s) on its board that are lit up.

  1. Check out this video that walks you through how to do this part.
  2. Let’s run our first code. Navigate to File → Examples → ENGR100-950 → Lab1-LED. A new window should open up, with some code on it. (Make sure to set the proper micro-controller and processor under the Tools menu). Upload and run the code, and observe what happens.
  3. Now, let’s try making an external LED blink instead of the built-in one. To do this, connect your LED and resistor circuit’s positive side to one of the digital pins on the Arduino. Make sure you modify the code such that #define LED_PIN 5 replaces “5” with the pin number you are plugged into. For example, D7 would replace “5” with “7”.
  4. Once this works, we are going to connect 5 more LEDs all to different pins. Your goal here is to take your new knowledge about breadboards to connect all 6 of your LEDs to your breadboard while using only 1 resistor. (Each LED still needs to be connected through a resistor though!) Configure the code to label these LEDs as you did for the previous step. If everything has set up in order, you should now see the lights turning on and off in a wave sort of order.
  5. Upload this code and again observe that the same behavior happens, but this time on the external LED as well. Now, take a picture of your breadboard in its working state. This will be included in your submission later.
  6. When someone around you is ready to help you with this step, unplug your Arduinos and breadboards from your computers and swap them with a neighbor. Each of you should move one wire on each other’s circuit without the other person watching. Hand each others boards back and attempt to diagnose what the other person changed in your board. Take a picture of this new board state to include in your submission. Once you believe you have fixed the issue, consult your original photo to ensure everything is wired as it was. Now, plug the Arduino and breadboard back into your computer and verify the LED still flashes as expected.

Note: If you are having trouble finding a partner, you do not need to swap with someone, simply having someone else change your board without you watching will suffice.

3. Voltage Divider

Consider a voltage divider shown below. The output voltage is related to the input voltage through the equation

\[V_{out} = \frac{R_2}{R_1 + R_2} V_{in}\]

Note: The order of the resistors here matters a great deal, getting them confused will lead you to the wrong value.

Simple voltage divider schematic

The concept of the voltage divider can be extended to any number of resistors. The output voltage at each node is simply the total resistance below that node divided by the total resistance of the circuit. As you might have guessed from the formula, when resistances are placed in-series like so, their resistances add. Make sure you understand the concept, you’ll need it for future labs.

  1. Disassemble any circuits you have from the previous parts of the lab.

  2. Plug a wire directly from the 5V line of the Arduino to the A1 pin of the Arduino.

  3. Go to File → Examples → ENGR100-950 → “Lab1-Voltage-Divider” to open the starter code for this section.
    • Here we will use the analogRead() function to read in the voltage.
    • To send the data back from the Arduino to your computer our sample codes uses Serial. First it specifies Serial.begin(9600) to initiate communications between the Arduino and your computer. The “9600” specifies the baud rate, and lets the Arduino know how fast to send data to the computer. Then, to actually transmit data, we use Serial.print(dataHere). The variable dataHere can be data of many types, including integers, doubles, and character arrays.
  4. To see the data sent from the Arduino to the computer, open the Serial monitor inside of the Arduino IDE. This can be done by clicking the magnifying glass in the top, left-hand corner of the IDE.
    • At the bottom of the Serial monitor, make sure the baud rate is set at 9600 to match the Arduino.
    • Record the value returned by analogRead(), as you’ll need it later.
  5. Unplug the Arduino from the computer.
  6. While the Arduino is not plugged into the computer, unplug the 5V side of the wire from A1 to 5V and plug it into ground (GND). ** Make sure that the new connection is from A1 to GND!!!** (Not 5V to GND - this would be very very bad!)
  7. Verify that the connection in step-6 is from A1 to GND.
  8. Reconnect the Arduino to the computer and open the serial monitor. What is the new value that is reported to the screen. Record this value.
  9. Unplug the Arduino from the computer.
  10. Build a voltage divider by setting \(V_{in}\) as the 5V line of the Arduino, have \(R_1\) be 1k\(\Omega\) and \(R_2\) be 1k\(\Omega\).
    • Plug \(V_{out}\) into A1 of the Arduino.
    • Resistance is denoted by a band color code, which you should get used to reading. Check the chart in resources for info and data on how to read resistances of resistors using their colors.
    • Our code uses the analogRead() function to read in the voltage and record the raw number that the function returns.
  11. Try playing with various resistor values, and take down the values from two more combinations of resistors. Make sure to write down the resistor combinations as well as the analog output for both of your additional experiments.
  12. Come up with a combination of resistors that will result in an output voltage of less than 1.25V.
    • You can convert the raw output from analogRead() into voltage values by multiplying by 5/1023.
    • You will learn why in lab 3! Try it and see if it works.

Post-Lab Questions

  1. Write a short blurb explaining what your peer changed on your breadboard and why you think this would cause it to not work as normal (or, why you think their change would not have impacted anything).
  2. When the Arduino A1 pin was connected to 5V, what was the reading from AnalogRead? When the Arduino A1 pin was connected to GND (0V), what was the reading? Do these make sense? Why?
  3. What combination of resistors did you use to get to less than 1.25V at the analog pin in step 3.7? Draw them in a circuit and upload/attach a picture of this circuit to make it clear where you put the resistors.
  4. Using three resistors in series, draw a voltage divider circuit with two \(V_{out}\)s (one between resistors 1 and 2 and one between resistors 2 and 3). \(V_{out1}\) should be equal to \(\frac{2}{3} V_{in}\) and \(V_{out2}\) should be equal to \(\frac{1}{3} V_{in}\). Give possible values those resistors could take. What would happen if we doubled the value of all of the resistors?

Hint: Resistors in series add together. So, if you have three resistors that are each 100\(\Omega\), and measured the voltage between the first and second resistors, the voltage divider circuit would have 100\(\Omega\) on one side and 200\(\Omega\) on the other side.

Submission

On Canvas, you will submit ONE PDF that will include all of the following:

To put said content into a PDF, it is suggested you create a new Google Doc and paste your images and write your text in the document. Export/Download this document as a PDF and upload it. DO NOT SUBMIT A GOOGLE DOC FILE.

Submitting anything other than a single PDF may result in your work not being graded or your scores being heavily delayed.

Post-Lab Extra Assignment

This semester, we are going to use a tool called Altium. We are also going to work with schematics a LOT. Instead of hand drawing all of the schematics, we are going to draw them in Altium. Therefore, as part of our first lab, we are going to have you do an exercise that walks you through how to draw a simple schematic in Altium. This is a separate submission on Canvas, with details on how to complete it here.
